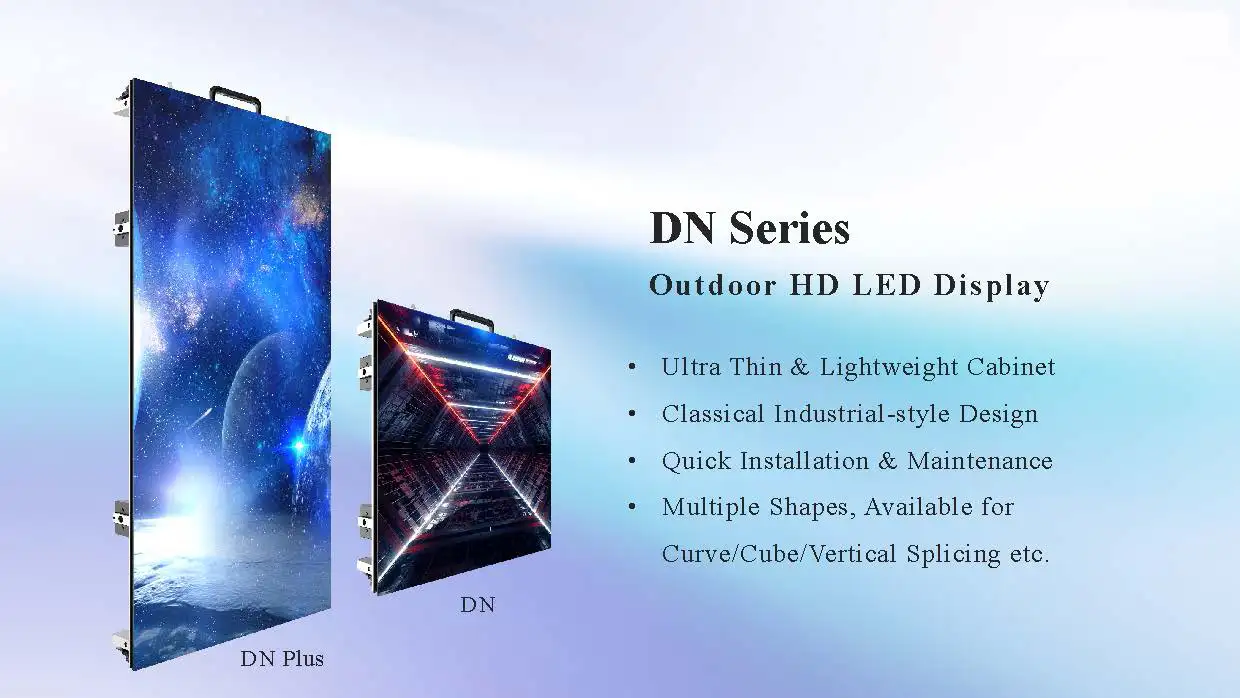

DN Series

Technical Advantages
The DN & DN Plus series delivers outdoor HD visuals with 2500–5000 nits brightness, 3840/7680Hz high refresh rate, and 14–16 bit gray scale for vivid, flicker-free images. It features front IP65 / rear IP54 waterproof and dustproof protection, a 160°/140° wide viewing angle, and support for Novastar, Magnimage, and Colorlight processing platforms. The anti-collision design protects corner lamp beads during transport and installation.

System Integration
The series offers three cabinet types: straight cabinet (regular lock), curved cabinet (±10° curved lock), and 45° beveled cabinet (90° lock). DN supports four-sided cutting edges, while DN Plus supports two-sided (left and right) cutting. It enables flexible splicing for curved shapes, cubic columns, cubes, vertical splicing, and even splicing with flexible screens. Maximum stacking and hanging height is 10 meters.

Maintenance & Reliability
The 500×250mm magnetic module and quick rear maintenance design ensure efficient installation and serviceability. The flight case packaging supports 6-in-1 or 10-in-1 configurations, with E1-grade eco-friendly wood board, anti-static lining, and a maximum load of 400kg. The cabinet is built for stable performance during long-hour operation, with certifications including MET, CE, and EMC.
