LED All-in-One Display

Technical Advantages

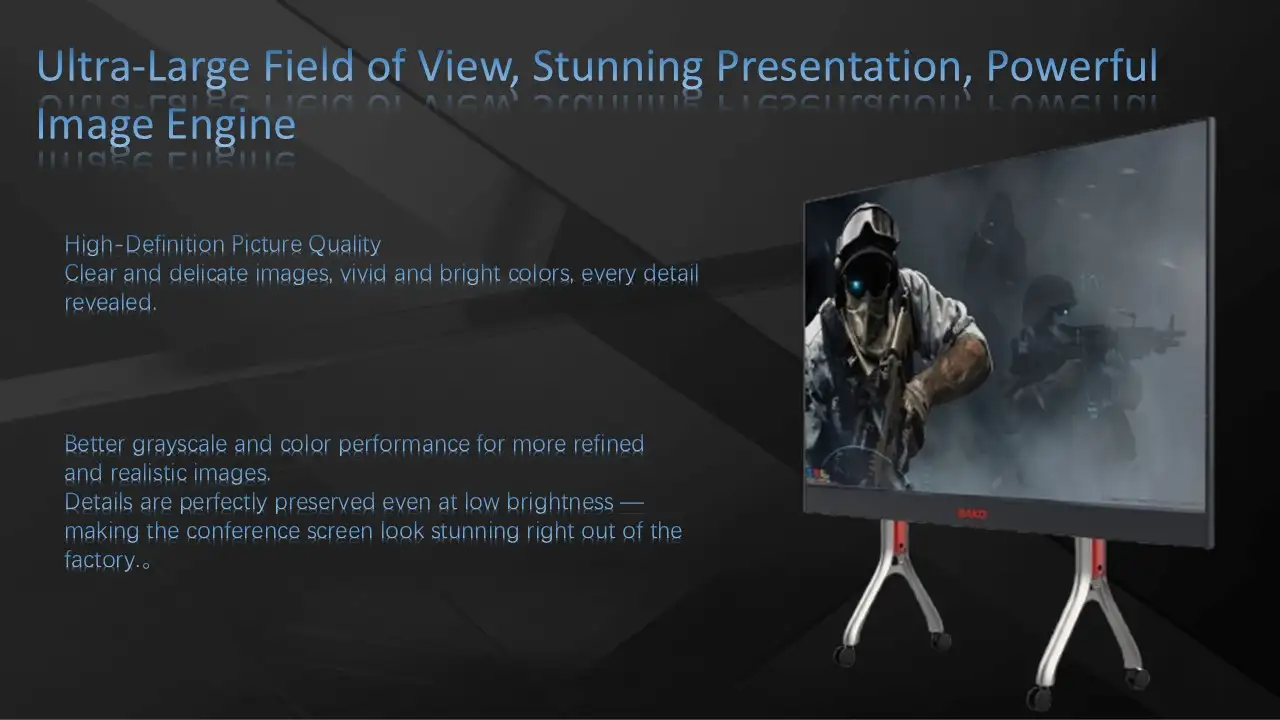

The COB LED All-in-One Display combines advanced Chip-on-Board encapsulation with an integrated smart conferencing system. COB packaging delivers superior protection against impact, dust, and moisture, while eliminating the grainy effect of traditional SMD LED for a soft, uniform, near-surface light source. Available in 108", 135", and 162" with pixel pitches from P0.78 to P1.87, it offers ultra-high brightness, high contrast, and a wide color gamut with per-pixel brightness and color calibration. Eye-care mode filters harmful blue light, while dynamic energy saving and smart black-screen reduce power consumption by up to 50% in black-screen mode and at least 20% during operation. The system supports wireless casting from Windows, iOS, and Android, up to 4-way split screen, tablet-based wireless annotation with >100 fps response, and optional 10-point IR touch.

System Topology
The display integrates a MEE210 conference card with Ethernet, USB, Type-C, HDMI, and relay modules. Content sources — laptops, mobile phones, tablets, or wireless display adapters — connect via wired HDMI/Type-C or wireless casting. The conference card processes signals and outputs to the LED conference screen, with dual-system wired/wireless signal switching. A Bluetooth voice remote enables convenient control, and cloud connectivity supports remote management and updates.

Installation & Maintenance
The display ships fully pre-assembled with LED modules, control system, and audio factory-calibrated. A two-person team can complete setup in 30–60 minutes using the lockable swivel casters on the mobile stand — no professional AV integrator needed. Wall-mount configurations attach directly to standard brackets. For maintenance, the modular architecture allows individual LED modules to be replaced without specialized tools. Cleaning requires only a power-off and a gentle wipe with a microfibre cloth; alcohol and solvents should be avoided. A 2-year warranty and free remote technical support are included.
